Products & Lifting Equipment
Our lifting equipment forms a key part of our core business. AL NAYZEK DRILLING manufactures and stocks the widest variety of lifting equipment, gears, accessories and appliances to accommodate the requirements of the lifting and rigging industries worldwide — with cost-effective, high-quality products backed by exceptional customer and after-sales care.
Full-Line Lifting & Rigging Supply
From slings and wire rope to hoists, winches and fall protection — one supplier for the complete rigging loft.
Slings
A wide variety of slings for the lifting and rigging industries: alloy chain slings, round slings, synthetic slings, metal mesh slings, single and multiple leg slings, web slings and many more.
Material Lifting Devices
Custom-fabricated lifting devices: bottle lifters, drum lifters, forklift attachments, spreader bars, lifting beams, material baskets, pad eyes, personnel lifting devices and scaffold baskets.
Rigging Hardware
Hardware for wire rope and chain from approved manufacturers: IP clamps, hooks and swivels, blocks, shackles, sling saver fittings and wire rope end fittings.
Rigging Tools
Plate clamps plus hydraulic rams, jacks and air bags, rollers and lifting magnets from internationally recognized manufacturers.
Hoists & Winches
Manual, electric and air-powered hoists, plus hand-powered, electrical and heavy-duty winches from reputed international manufacturers.
Tie Downs & Cordage
Tie downs in winch, ratchet and flat-bed styles (Grades 3, 4 & 7), plus durable cordage: manila, nylon, poly-dac and polypropylene rope.
Fall Protection
Full body harnesses, safety straps, body belts, lanyards and self-retracting lifelines to keep workers safe in demanding environments.
Personnel Lifting Devices
A safer way to lift personnel in the oil field — purpose-built personnel lifting devices and work platforms to suit different operational needs.
Wire Rope Accessories
Wire rope swagers, pullers and cutters from internationally reputed manufacturers.

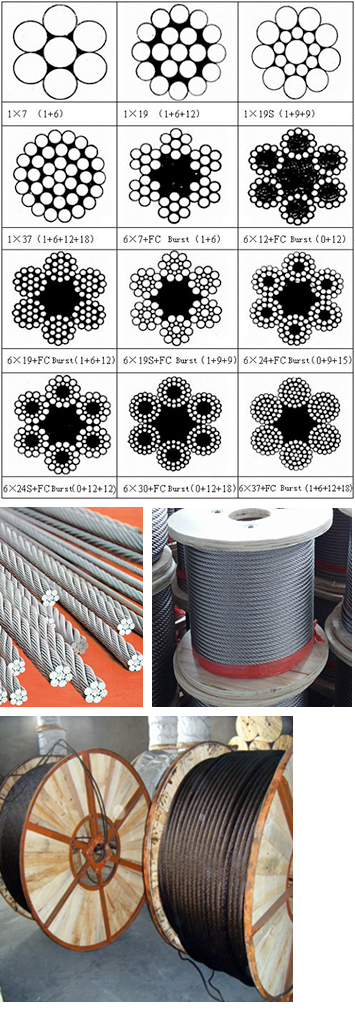

Steel Wire Ropes
Wire rope is used continuously across the lifting and rigging industries. Each rope is constructed of several steel strands laid together like a helix; each strand consists of smaller wires laid in a similar way. Every wire rope has three basic components — wires, strands and the core. The core may be fibre (FC) such as sisal, manila or jute, or an Independent Wire Rope Core (IWRC): a smaller wire rope within the strands of the outer rope. Wires are predominantly high-carbon steel, and may also be iron, stainless steel, Monel or bronze.
Carbon steel wire rope is manufactured in various grades — Improved Plow Steel (IPS), Extra Improved Plow Steel (EIPS) and Extra Extra Improved Plow Steel (EEIPS) — designating the nominal strength of the rope.
- General engineering ungalvanized wire ropes 6X19, 6X25, 6X36, 6X41 and non-rotating 19X7, 35X7
- General engineering galvanized wire ropes 7X7, 7X19, 6X36, 6X41 and non-rotating
- AISI 316 stainless steel wire ropes for architectural, yacht rigging and balustrade systems
- AISI 316 stainless steel fittings for use with our steel cables
- Full range of wire rope fittings
Gabas Wire · Bridon · Kiswire · Bash-P · DSR · Union · Brunton Wolf — diameters from 2 mm to 152 mm.

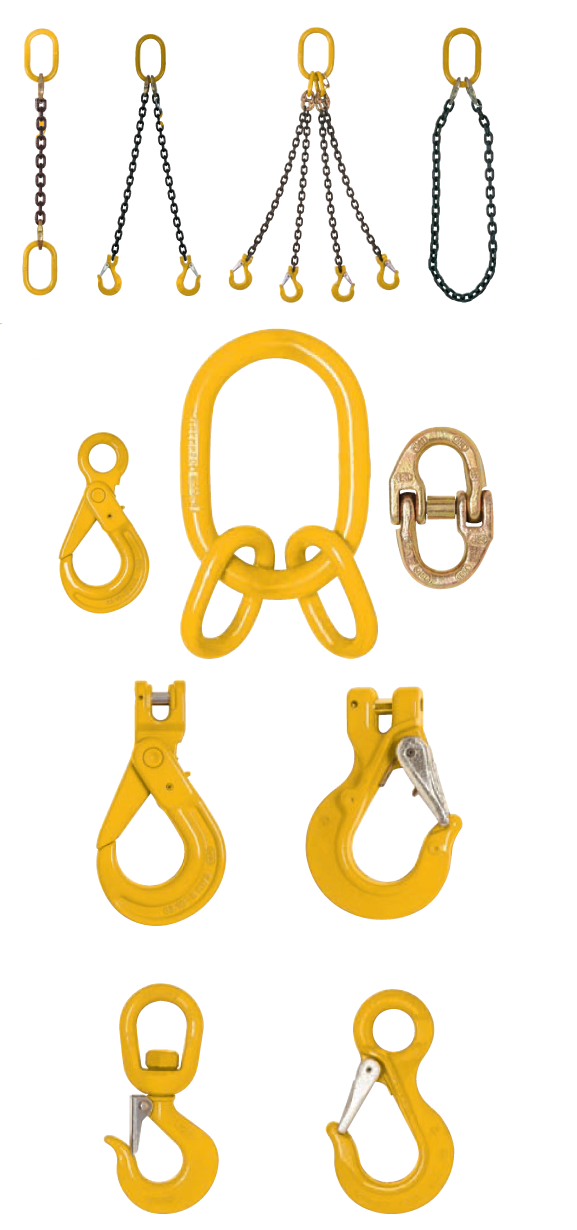

Chain Sling
Chain slings are often selected for high temperatures or rugged conditions that would abrade or destroy other sling types. They are flexible, durable and long lasting, ductile, easy to inspect, collapsible for convenient storage, and adhere securely to the contours of a load.
Although chain shows little or no stretch at rated capacity, it can elongate up to 20% prior to failure — a visual warning to remove the sling from service before injury or damage occurs. The most advantageous feature of a chain sling is repairability: nearly any damaged component found during inspection can be repaired, refurbished, proof tested and recertified — an economical alternative to replacement.
AL NAYZEK DRILLING manufactures chain slings using permanent welded coupling links — or mechanical coupling links for quicker field assembly. Every sling carries an identification tag with grade, size, EWL, sling type, working load limit at a specific lift angle, and serial number.
Sling Designation — Three-Character Code
We supply a wide range of chain end terminations and fittings for regular and bespoke chain and rigging requirements — sourced from approved factories worldwide, fully supported by certified quality management systems, with full traceability from raw material to end product.
Webbing Sling
Synthetic web slings in nylon or polyester flat webbing — for lifting highly polished, fragile or delicate loads. The soft, wide surface grips firmly without marring, defacing or scratching the load.
- Type 1: Steel or aluminum triangles both ends
- Type 2: Triangle one end, choker fitting other end
- Type 3: Flat eyes each end
- Type 4: Twisted eyes each end
- Type 5: Endless sling
- Type 6: Reverse eye sling

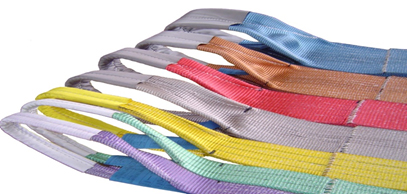

Type 1 Web Sling
- Nylon or polyester combination choker/basket web slings
- Heavy-duty webbing with UV inhibitors
- Blue vinyl tag with clear vinyl cover to protect data
- 3–7% stretch with polyester; 6–10% with nylon
- Alloy steel or aluminum fittings · proof testing on request
- Design factor of 7 to 1

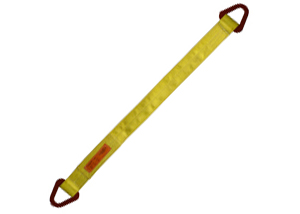

Type 2 Web Sling
- Nylon or polyester basket-type web slings
- Heavy-duty webbing with UV inhibitors
- Blue vinyl tag with clear vinyl cover
- 3–7% stretch with polyester; 6–10% with nylon
- Alloy steel or aluminum fittings · proof testing on request
- Design factor of 7 to 1

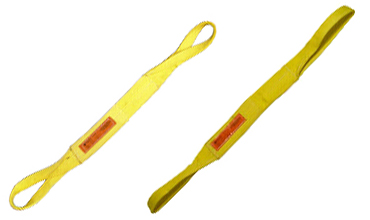

Type 3 Web Sling — Flat Eyes
- Flat or twisted eyes each end
- Extra eye protection with buffer-web lined eyes
- Heavy-duty webbing with UV inhibitors
- 3–7% stretch with polyester; 6–10% with nylon
- Alloy steel or aluminum fittings · proof testing on request
- Design factor of 7 to 1

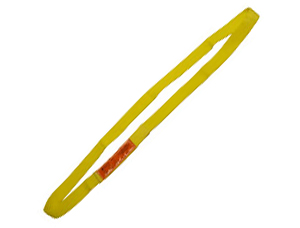

Type 4 Web Sling — Endless
- Nylon or polyester endless web sling
- More stability when choked
- Heavy-duty webbing with UV inhibitors
- 3–7% stretch with polyester; 6–10% with nylon
- Alloy steel or aluminum fittings · proof testing on request
- Design factor of 7 to 1

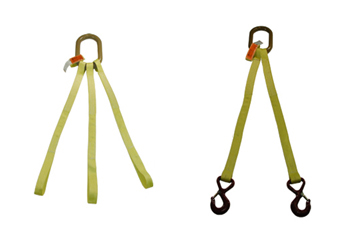

Web Bridles — 2, 3 or 4 Leg
- Nylon web bridle with master link and standard eyes or web hooks
- Alloy master link with 45° indicator marks
- Standard eyes or WS-320 web hooks on bottom
- 6–10% stretch with nylon · proof testing on request
- Design factor of 7 to 1

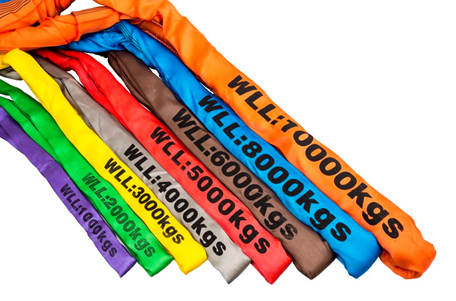

Round Slings
Lightweight with superior flexibility to conform to the load shape. Polyester load yarns in seamless tubing with no stitched edges to snag; color-coded for size with a high-visibility orange tag noting rated loads, hitch types, core & cover material.
- Double polyester tubing for abrasion resistance and easier inspection
- Eye-and-eye type with 2 layers of buffer tubing for durability
- Sliding sleeves and synthetic armor pads available
- Design factor of 5 to 1
Web slings can be damaged, abraded, punctured or cut if not protected. Guard against load edges, jagged materials, abrasion surfaces and burred hooks.

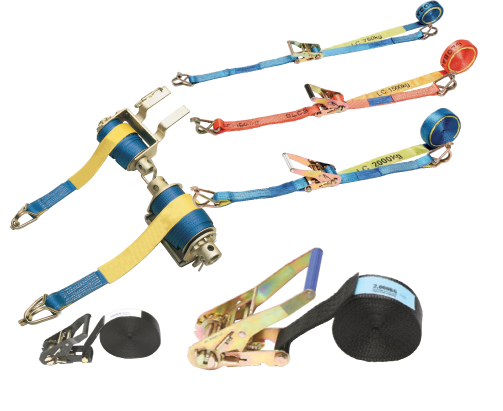

A quality-assured range of ratchet and cargo lashing for securing cargo during transportation or storage — fabricated from the finest materials for strength and durability, available in multiple specifications to client requirements.
Hoists · Shackles · Hooks

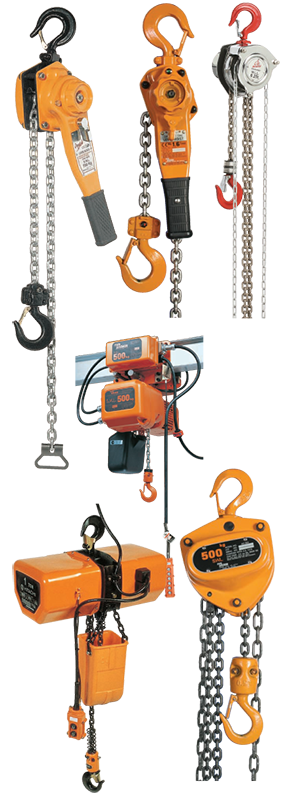

Hoists
A hoist lifts and lowers a specific load safely and easily. Hoists are classified by load capacity and power source — manual, electric or air — and use either wire rope or chain.
- Overload clutch standard on lever and chain hoists; modern compact stamped-steel construction
- Fully machined steel load sheaves
- Cast steel hook latches instead of stamped steel
- Fully enclosed gear train and caged internal bearing
- All exposed parts plated or powder coated for corrosion protection
- Bottom hooks equipped with roller thrust bearings
- Double pawl Weston-style load brake
- Lightweight, compact design with highly efficient motor and high-strength pressed-steel body
- Tensile safety hooks
- Compact high-strength plastic chain container with outstanding durability
- Limit switches at top and bottom ends switch power off automatically
- Phase-error display prevents motor running on incorrect wiring

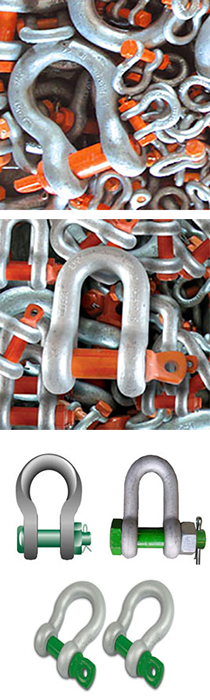

Shackles
Lifting shackles connect the load lifting device (hoist hook / sling) to the load. Two main styles: "D" (Dee) shackles and bow (Omega) shackles — galvanized, self-color, forged carbon steel. Pin options include screw pin and safety pin (captivated by split pin or nut with split pin).
- Stainless steel lifting shackles, ROV shackles, hydraulic remote release and wide-body shackles
- Own Bash-P brand plus Crosby, Van Beest, Gunnebo and other reputed brands
- Galvanized shackles for added strength; type 316 marine-grade stainless (with molybdenum) for chloride corrosion resistance in marine applications

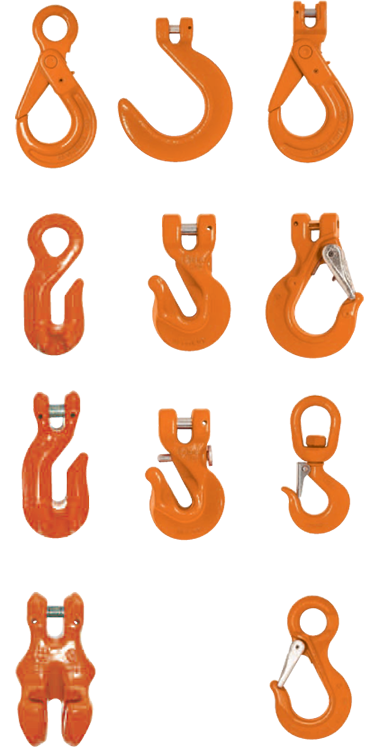

Hooks, Links & Swivels
Major stocks of high-quality branded rigging equipment, tools and hardware — brands including Bash-P, Johnson Gunnebo, Tractel, Vital, Yoke, Talurit and Crosby. Lifting hooks are usually equipped with a safety latch to prevent disengagement of the sling, chain or rope; swivels allow the connected object to rotate.
- Grab hook: designed to "grab" and keep a chain from slipping off the hook
- Slip hook: wider throat, often latched to keep the attached object in place
- Clevis hook: clevis and bolt or pin at the base for secure fastening to bracket or chain
- Self-locking hook: will not open under heavy load when used within working load limits
